Field Installation Procedure - Mills Spray Cool Option

Written By: Trent Plungas
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Steps

4

Time Required

00:45:00 - 01:00:00

Sections

1

  1. On DPM, Fogbuster is to be mounted halfway between the two holes used for moving the machine. Fogbuster is not shipped on machine for DPM models 2, 3 & 5. Fogbuster is mounter to side of machine as shown. Fogbuster kit needs some assembly.

    • On DPM, Fogbuster is to be mounted halfway between the two holes used for moving the machine. Fogbuster is not shipped on machine for DPM models 2, 3 & 5.

    • Fogbuster is mounter to side of machine as shown.

    • Fogbuster kit needs some assembly.

  2. Fogbuster is to be mounted to rear side of splash guard. Fogbuster is to be mounted to rear side of splash guard. Fogbuster is to be mounted to rear side of splash guard.

    • Fogbuster is to be mounted to rear side of splash guard.

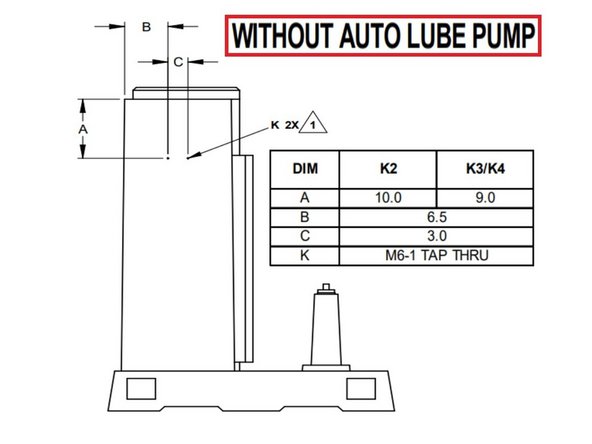

  3. Use M6 tap & #9 drill bit x 2.

    • Use M6 tap & #9 drill bit x 2.

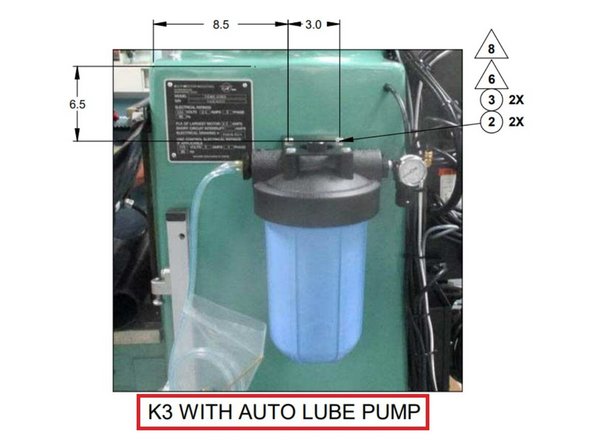

  4. Drill and tap (2) M6 holes & orient Fogbuster as shown.

    • Drill and tap (2) M6 holes & orient Fogbuster as shown.
