  1. Verify all electrical connections:
    • Verify all electrical connections:

    • Extension Cable to Computer

    • Work Lights to Extension Cable

    • If all connections are present and Lamp still does not function, proceed to step 2 below.

  2. Unplug Extension Cable from the Computer Module and the Work Light cables. Verify there is continuity between Pin 1 P1 (red wire) to Pin 1  P2 and P3. Then verify continuity between Pin 2 P1 (black wire) to Pin 2 P2 and P3 (see connectivity chart on drawing) Note: Set meter to continuity and verify 'beep' and zero ohms (0) on screen.
    • Unplug Extension Cable from the Computer Module and the Work Light cables.

    • Verify there is continuity between Pin 1 P1 (red wire) to Pin 1 P2 and P3. Then verify continuity between Pin 2 P1 (black wire) to Pin 2 P2 and P3 (see connectivity chart on drawing)

    • Note: Set meter to continuity and verify 'beep' and zero ohms (0) on screen.

    • If Cable continuity fails test, replace Extension Cable, P/N 27635-50.

    • If Cable continuity passes test, proceed to step 3 below.

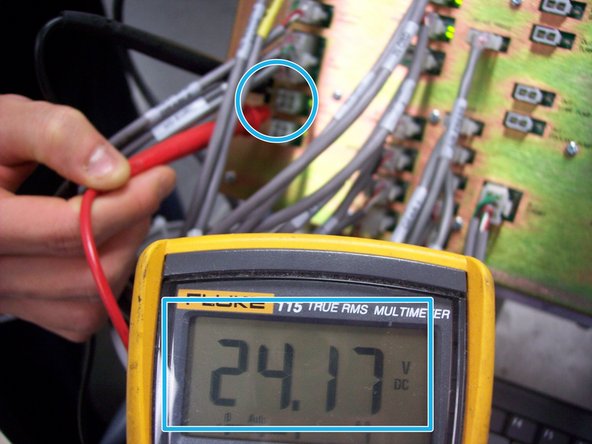

  3. Locate the "Out-Lights" connector on the Computer Module, near lower left corner.
    • Locate the "Out-Lights" connector on the Computer Module, near lower left corner.

    • Set meter to DC Volts and verify 24 Volts between pins 1 and 2 on connector.

    • If 24 Volts is present and the Extension Cable passes the continuity test in step 2, replace the entire Lamp Assembly, P/N 29066.
